Model type by deployment option

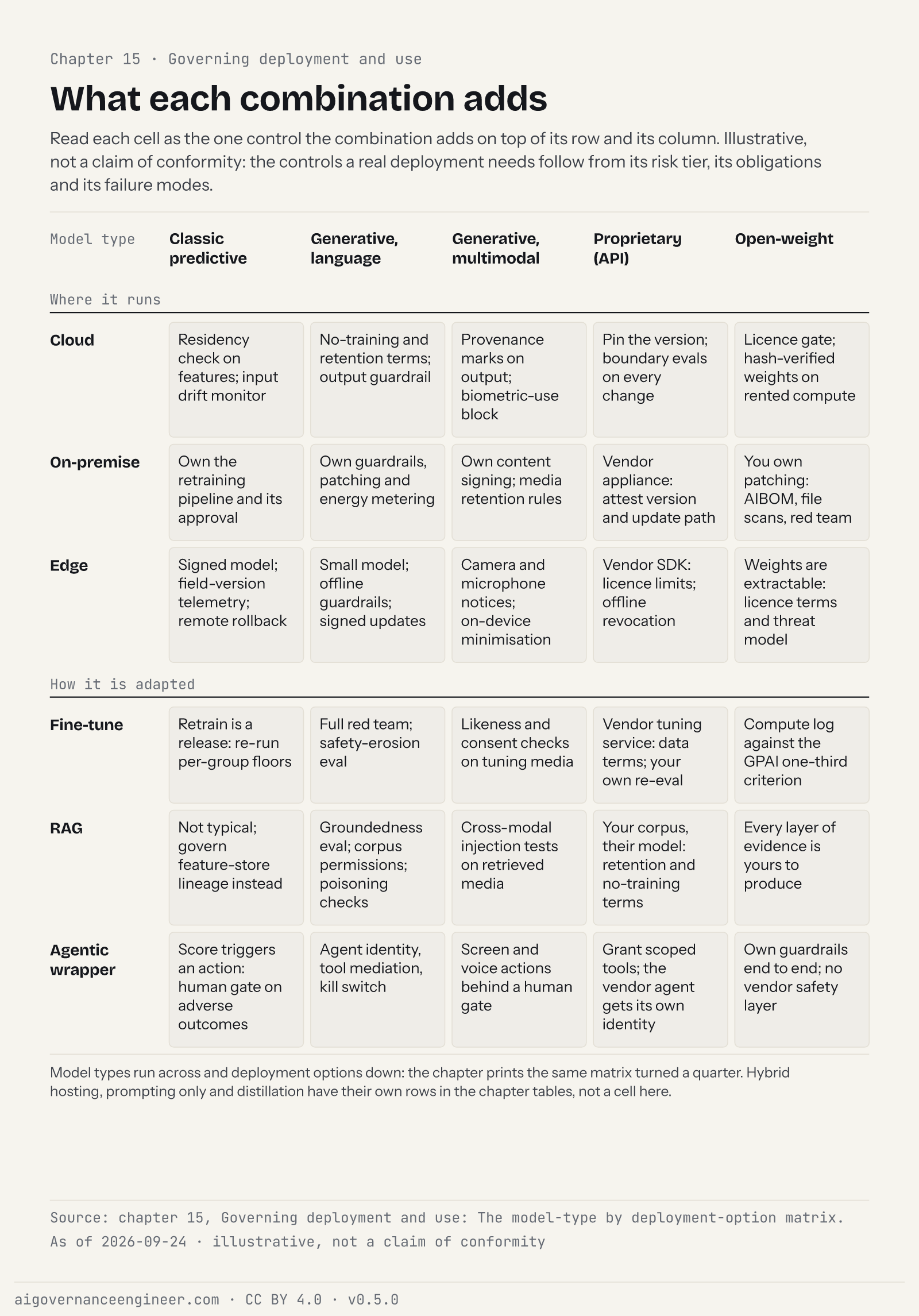

A grid of five model types across and six deployment options down, each cell naming the one control that combination adds on top of its row and column.
Text alternative
Illustrative, not a claim of conformity: the controls a real deployment needs follow from its risk tier, its obligations and its failure modes. Five model types run across (classic predictive; generative, language; generative, multimodal; proprietary API; open-weight) and six options run down in two groups: where it runs (cloud, on-premise, edge) and how it is adapted (fine-tune, RAG, agentic wrapper). Each cell is the one control the combination adds on top of its row and its column: for example, a classic predictive model behind an agentic wrapper needs a human gate on adverse outcomes, because a score now triggers an action; a generative language model with RAG needs a groundedness eval, corpus permissions and poisoning checks; an open-weight model fine-tuned in house needs a compute log against the GPAI one-third criterion. Chapter 15 prints the same matrix with model types as rows; hybrid hosting, prompting only and distillation have their own rows in its tables but no cell here. The full grid is in the data table.
Data
| Deployment option | Classic predictive | Generative, language | Generative, multimodal | Proprietary (API) | Open-weight |
|---|---|---|---|---|---|
| Cloud | Residency check on features; input drift monitor | No-training and retention terms; output guardrail | Provenance marks on output; biometric-use block | Pin the version; boundary evals on every change | Licence gate; hash-verified weights on rented compute |
| On-premise | Own the retraining pipeline and its approval | Own guardrails, patching and energy metering | Own content signing; media retention rules | Vendor appliance: attest version and update path | You own patching: AIBOM, file scans, red team |
| Edge | Signed model; field-version telemetry; remote rollback | Small model; offline guardrails; signed updates | Camera and microphone notices; on-device minimisation | Vendor SDK: licence limits; offline revocation | Weights are extractable: licence terms and threat model |
| Fine-tune | Retrain is a release: re-run per-group floors | Full red team; safety-erosion eval | Likeness and consent checks on tuning media | Vendor tuning service: data terms; your own re-eval | Compute log against the GPAI one-third criterion |
| RAG | Not typical; govern feature-store lineage instead | Groundedness eval; corpus permissions; poisoning checks | Cross-modal injection tests on retrieved media | Your corpus, their model: retention and no-training terms | Every layer of evidence is yours to produce |
| Agentic wrapper | Score triggers an action: human gate on adverse outcomes | Agent identity, tool mediation, kill switch | Screen and voice actions behind a human gate | Grant scoped tools; the vendor agent gets its own identity | Own guardrails end to end; no vendor safety layer |
Source: Chapter 15, The model-type by deployment-option matrix (src/data/deployment-options.ts)
Download

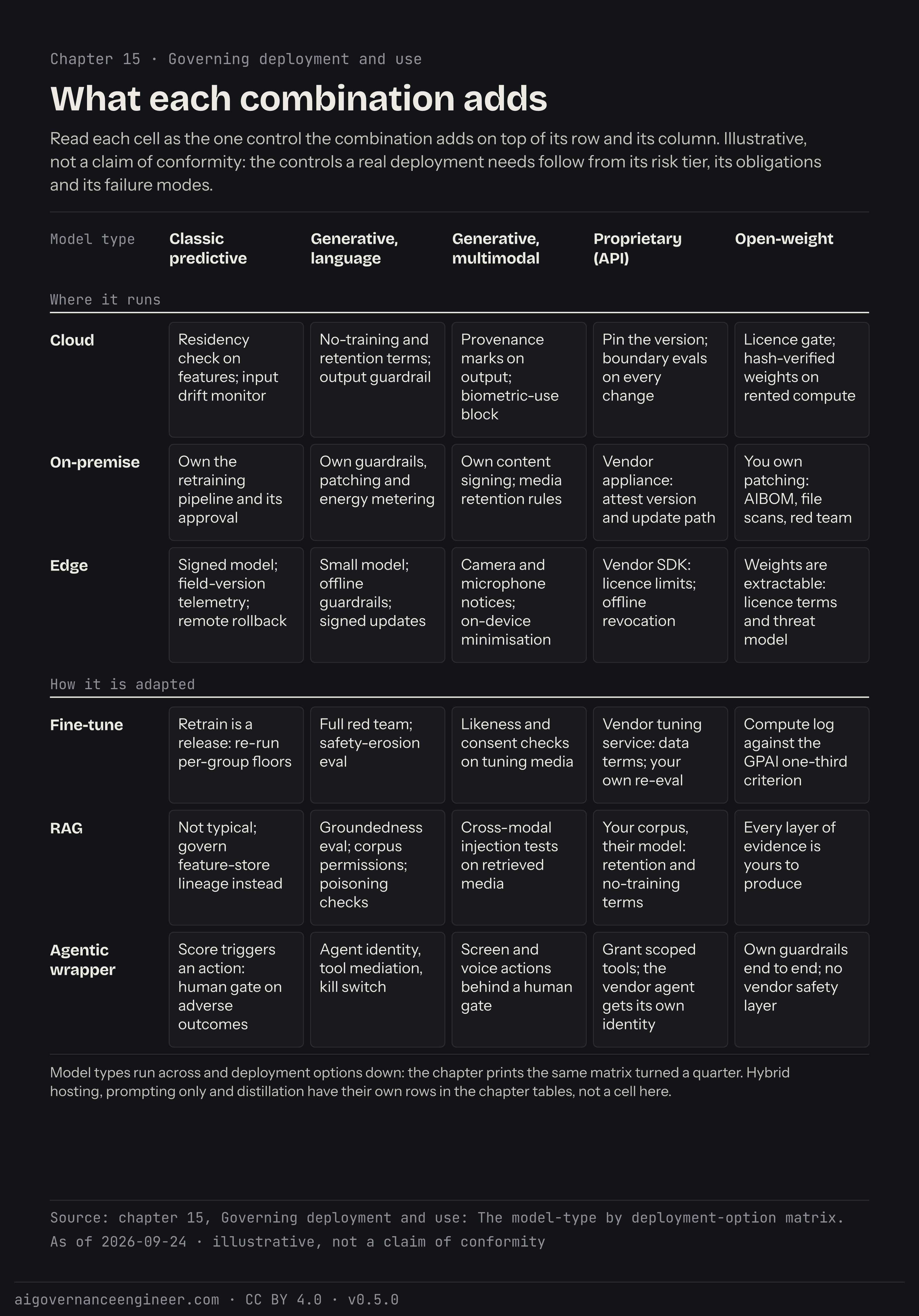

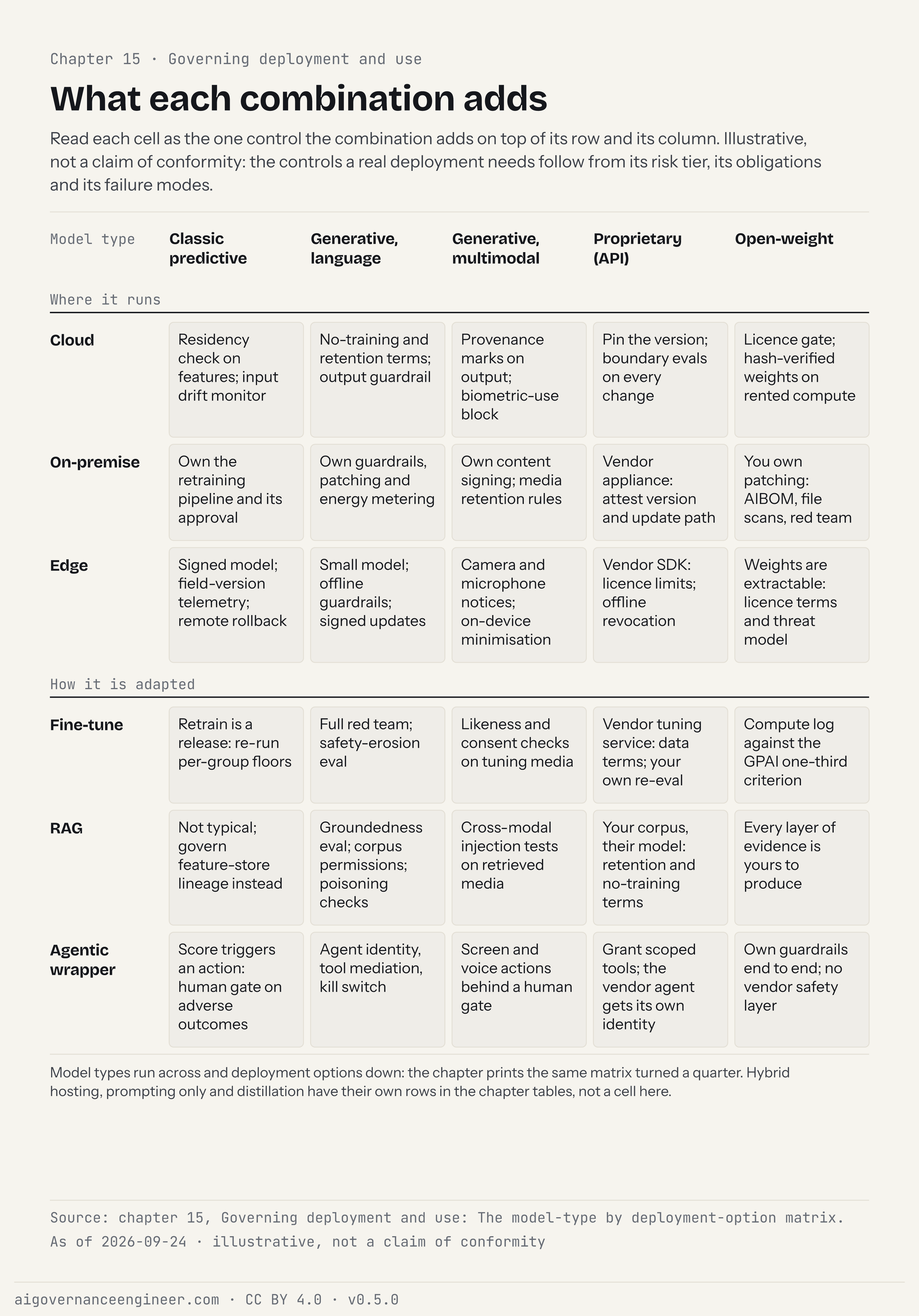

Every file carries the attribution band "aigovernanceengineer.com · CC BY 4.0 · v0.5.0" inside the image, and the version is in the file name, so a copy always says where it came from and which edition it shows. The SVGs keep the text live: the first follows the viewer's light or dark setting, the other two fix one theme for slides and print. The PNGs are drawn with the site's own typefaces.
Reuse and credit
The figure is published under CC BY 4.0: you may copy, share and adapt it, commercially too, provided you give appropriate credit, link to the licence and say if you changed it. Keep the attribution band in the image. A credit line that covers title, author, source and licence:
“Model type by deployment option” by Jorge García Aibar, aigovernanceengineer.com (https://aigovernanceengineer.com/figures/deployment-option-matrix), v0.5.0, as of 2026-09-24. Licensed under CC BY 4.0 (https://creativecommons.org/licenses/by/4.0/).
